Rated power: 810kW/1300rpm
The adjustable speed range of the turbine: 800 rpm to 1300 rpm.
More Information

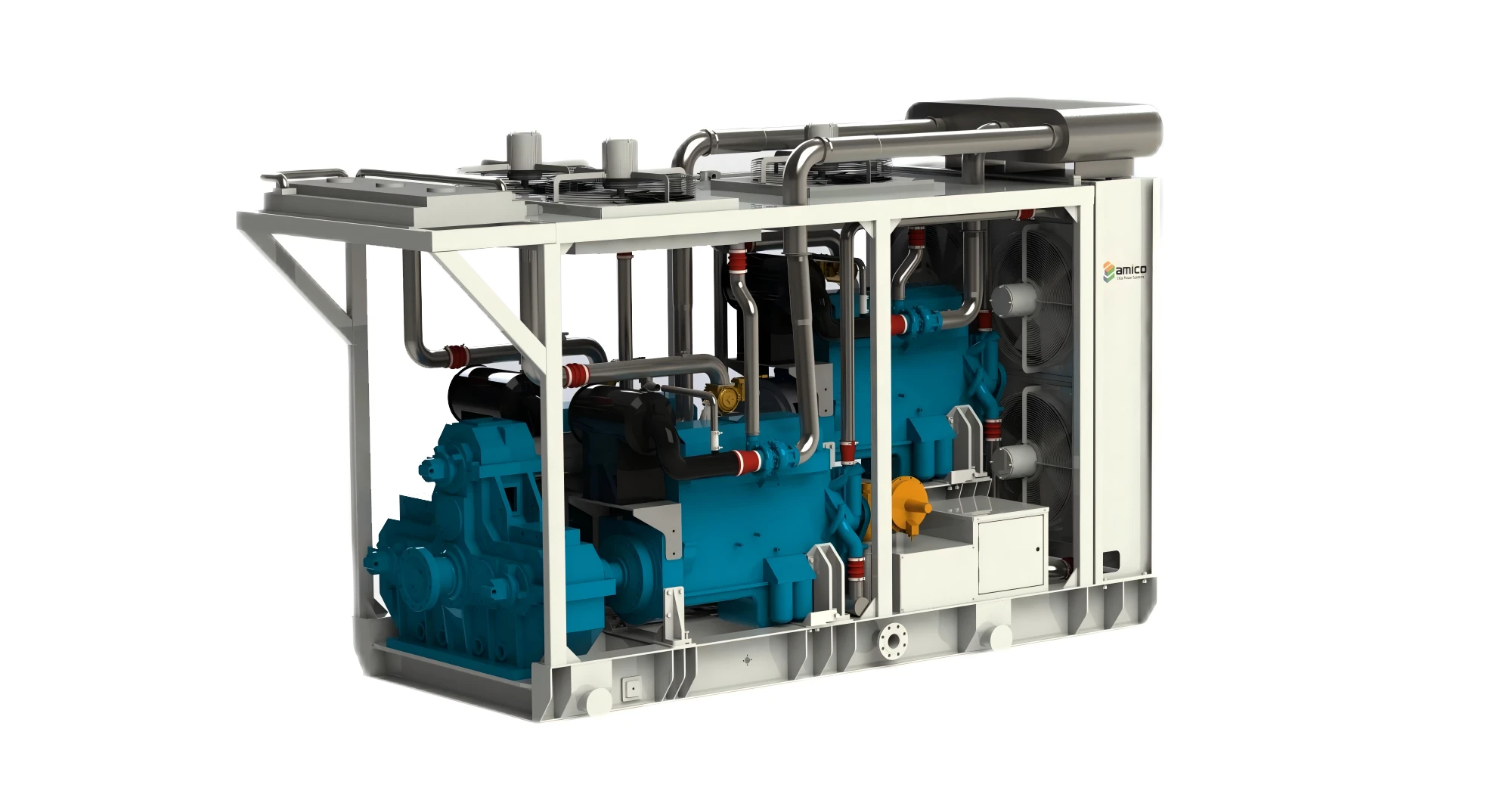

810kW Gas Engine Technical Parameters
Gas Engine Technical Specifications
Gas Engine Model: AMC810DF-3PN
Rated Power: 810kW/1300rpm
Engine Adjustable Speed Range: 800 rpm~1300 rpm
Maximum Torque Output Range: 7000 Nm /900 rpm~1100 rpm
Engine Technical Specifications
Engine Model: STEYR T12
Bore (mm): 126
Displacement (L): 11.596
Stroke (mm): 155
Compression Ratio: 11:1
Air Intake Method: Turbocharged Intake
Fuel Control Method: Lean Combustion, Closed-Loop Control
Speed Regulator Type: Electronic Speed Control
Unit Dimensions (L×W×H) mm: 4700×2000×2400
Unit Weight (kg): 9550
1. Cost Efficiency
- Improve air-fuel ratio while reducing emissions, extend engine lifespan, and lower maintenance costs
- Precisely control gas combustion, improving fuel economy by 5-10% compared to conventional systems
- Control system certified by CCS (China Classification Society), reliable quality, stable operation, and low post-operation maintenance costs
2. Responsiveness
- Ultrasonic fuel injection valve controls fuel supply, enabling instantaneous engine response to meet abrupt load changes like sudden acceleration/deceleration. Proven in large-scale oilfield applications (drilling, fracturing) and industrial fluctuating conditions.
3. Emissions
- Complies with China National V emission standards or non-road T3+ standards
- NOx levels below 200ppm
4. Others
- Short lead time, fastest delivery within 1 week;
- "Plug-and-play" integrated design, fastest commissioning within 1 day; facilitates project relocation;
- Comprehensive protection, 20+ years of project experience with 0 accidents;
- Full lifecycle software upgrading services, enabling real-time site visibility.
