Technical Parameters

Parameter Table

Serial number

Parameter name

Specification

1

unit

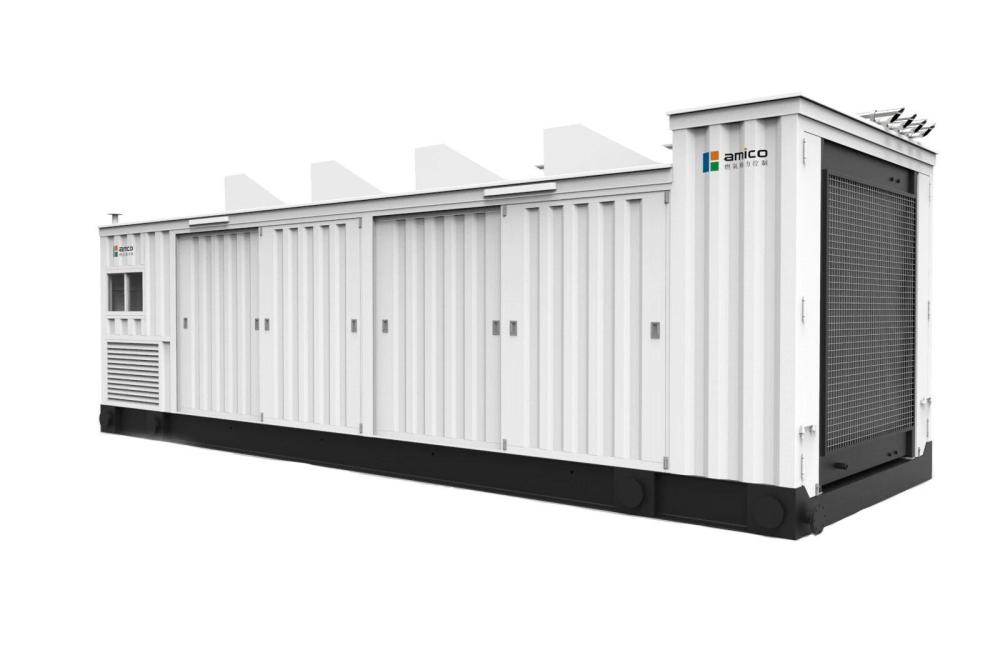

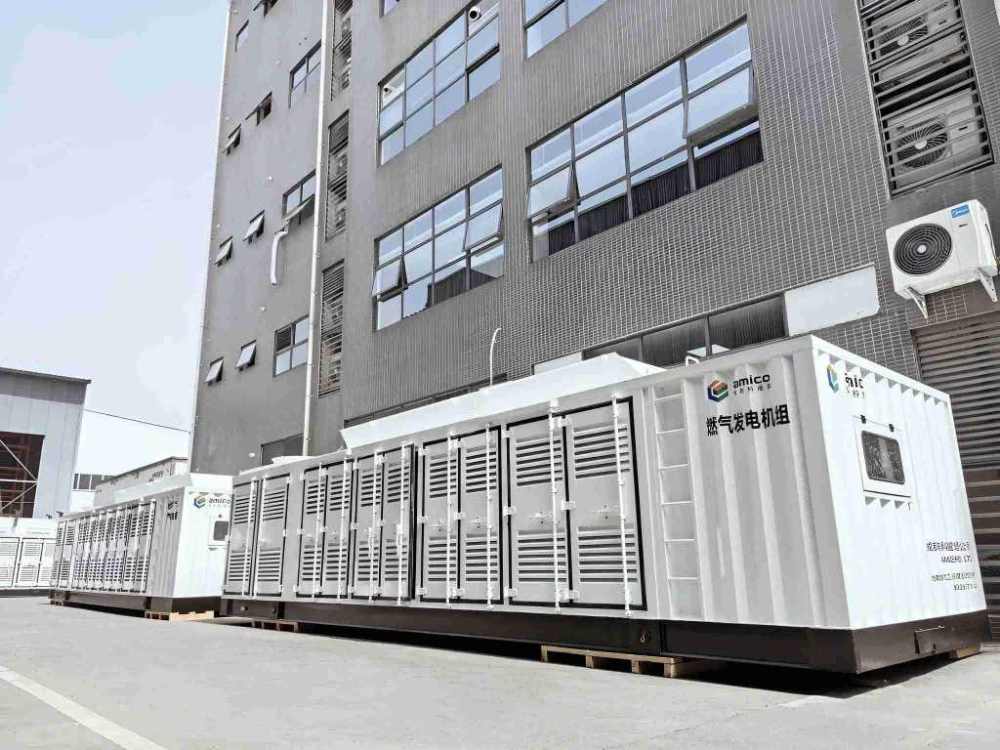

1000kW natural gas generator set

1.1

Unit Model

AMC1000NS

1.2

Rated Power

1000kW

1.4

Rated current

1804A

1.5

Rated voltage

230/400V

1.6

Rated frequency

50Hz

1.7

Power Factor

0.8 (lagging)

1.8

Startup method

DC24V electric start

1.9

Speed regulation mode

Electronic speed control

1.10

Fuel control method

Lean burn, closed loop control

1.11

Ignition method

Electronically controlled single cylinder independent high energy ignition

1.12

Unit operation type

One-key automatic start, one-key paralleling, one-key delivery; one-key shutdown, etc.

1.13

Unit dimensions

10,500×3,000×3,000mm

1.14

Unit weight

20000kg

Note: Products with other voltage levels and frequencies can be provided. If you have any questions, please feel free to consult.

Technical characteristics

1. Economic Efficiency

  • Improve air-fuel ratio while reducing emissions, extend engine lifespan, and lower maintenance costs
  • Precisely control fuel combustion, achieving 5-10% higher fuel economy compared to peers
  • System certified by CCS (China Classification Society), reliable quality, stable operation, and low post-operation maintenance costs

2. Responsiveness

  • Ultra-fast fuel injection valve controls fuel supply, enabling instantaneous engine response to meet surge load demands like sudden acceleration/deceleration. Proven in large oilfield (drilling, fracking) and industrial fluctuation applications.

3. Emissions

  • Complies with China National V emission standards or non-road T3+ standards
  • NOx below 200ppm

4. Others

  • Short lead time, fastest delivery within 1 week;
  • "Plug-and-play" integrated design, operational within 1 day; facilitates project relocation;
  • Comprehensive protection, 20 years of project experience with 0 accidents;
  • Full lifecycle software upgrading services ensure real-time site visibility.
