More Information

Technical Parameters

Parameter Table

Serial number

Parameter name

Specification

1

unit

1200kW natural gas generator set

1.1

Unit Model

AMC1200NS

1.2

Rated Power

1200kW

1.4

Rated current

2165A

1.5

Rated voltage

230/400V

1.6

Rated frequency

50Hz

1.7

Power Factor

0.8 (lagging)

1.8

Startup method

DC24V electric start

1.9

Speed regulation mode

Electronic speed control

1.10

Fuel control method

Lean burn, closed loop control

1.11

Ignition method

Electronically controlled single cylinder independent high energy ignition

1.12

Unit operation type

One-key automatic start, one-key paralleling, one-key delivery; one-key shutdown, etc.

1.13

Unit dimensions

10,500×3,000×3,000mm

1.14

Unit weight

20000kg

Note: Products with other voltage levels and frequencies can be provided. If you have any questions, please feel free to consult.

Technical characteristics

1. Economy

  • Improve air-fuel ratio, reduce emissions, extend engine lifespan, and lower maintenance costs
  • Precise control of fuel combustion, improving fuel economy by 5-10%
  • Control system certified by CCS, reliable quality, stable operation, and low post-operation maintenance costs

2. Responsiveness

  • Ultra-fast fuel injection valve controls fuel supply, enabling instant engine response to meet surge load demands. Proven in large oil fields (drilling, fracturing) and factory fluctuating conditions.

3. Emissions

  • Complies with China National V emission standards or non-road T3+ standards
  • NOx below 200ppm

4. Others

  • Short delivery time, fastest within 1 week
  • "Plug-and-play" integrated design, fastest 1-day electrification; facilitates project relocation
  • Comprehensive protection, 20 years of project experience,0 accidents
  • Full lifecycle software upgrading services, enabling real-time site visibility.

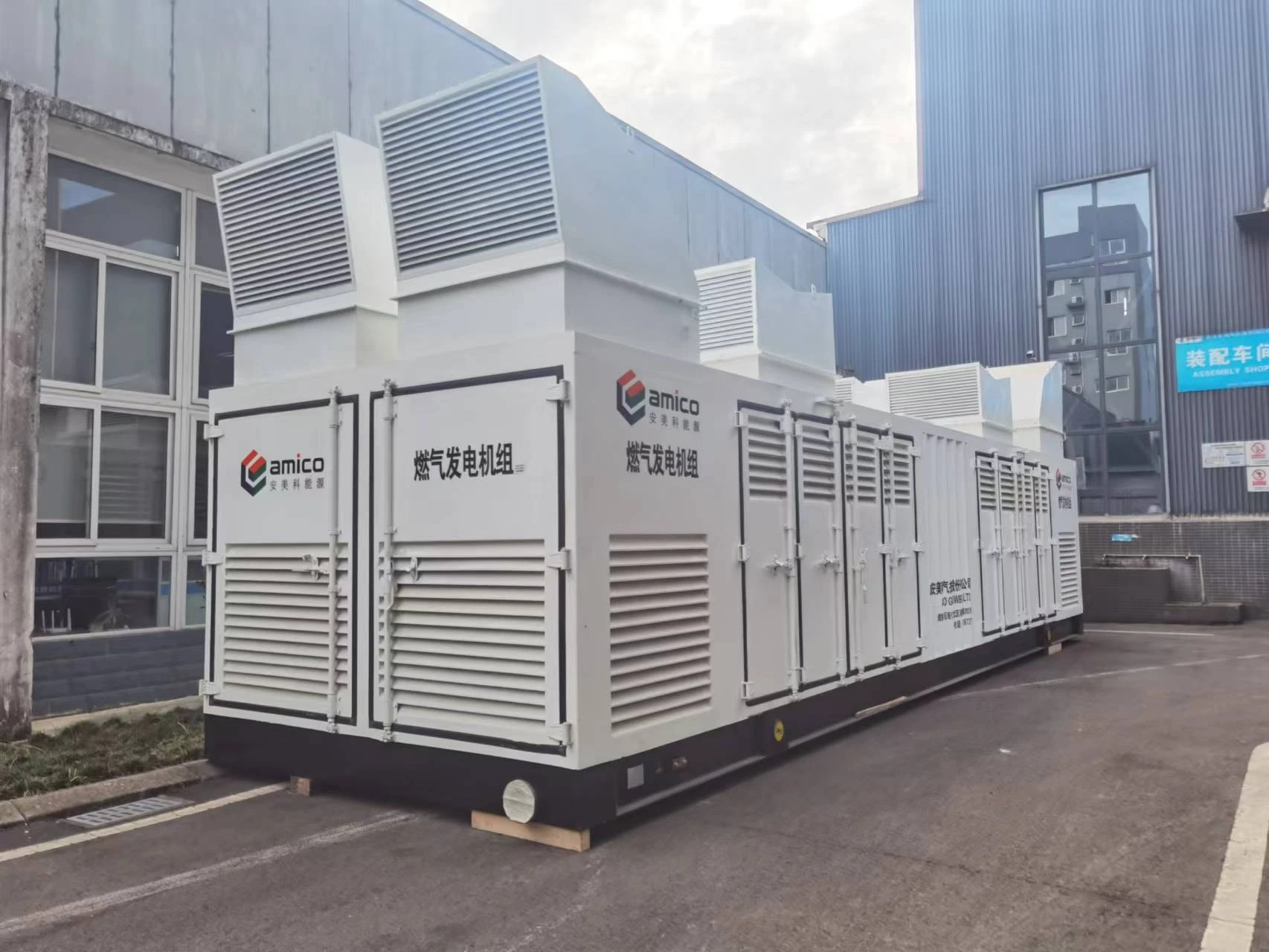

Photo of 1200kW unit (1).jpg
