Rated power: 1100kW/1500rpm
Engine adjustable speed range (rpm): 900 ~ 1800
Output speed range (rpm): 350 ~ 900
More Information
Gas Engine Technical Specifications
Gas Engine Model: AMC1100DF-PN
Rated Power: 1100kW/1500rpm
Engine Adjustable Speed Range (rpm): 900~1800
Output Speed Range (rpm): 350~900

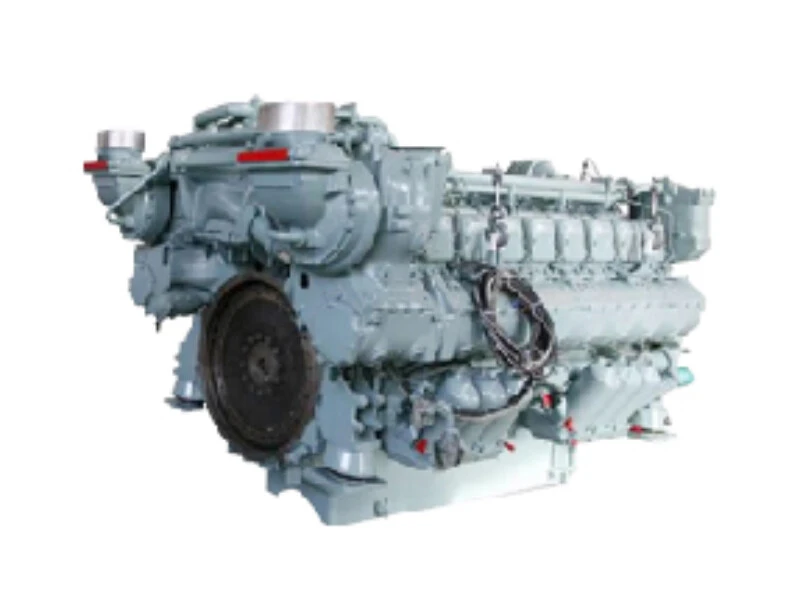

Engine Technical Specifications
Engine Model: MTU 16V165;
Bore (mm): 165
Displacement (L): 63.29
Stroke (mm): 185
Compression Ratio: 11:1
Intake Method: Turbocharged
Fuel Control Method: Lean Burn, Closed-Loop Control
Governor Type: Electronic Speed Control
Unit Dimensions (L×W×H)mm: 5100×1850×2200
Unit Weight (kg): 950
Advantages and Features
Reliable, Robust, and Durable Design
Automotive-grade components, 100,000 hours of trouble-free operation.
High Fuel Efficiency
Automatic and manual modes available, automatic mode enables balanced load distribution.
1. Economical
- Improve air-fuel ratio while reducing emissions, extend engine lifespan, and lower maintenance costs
- Precisely control gas combustion, improving fuel economy by 5-10% compared to peers
- System certified by CCS (China Classification Society), reliable quality, stable operation, and low post-operation maintenance costs
2. Responsiveness
- Ultra-fast fuel injection valve controls fuel supply, enabling instantaneous engine response to meet surge load demands like sudden acceleration/deceleration. Proven in large oilfield (drilling, fracturing) and factory fluctuation applications.
3. Emissions
- Complies with China National Stage V or non-road T3+ emission standards
- NOx below 200ppm
4. Others
- Short delivery time, fastest within 1 week
- "Plug-and-play" integrated design, operational within 1 day; facilitates project relocation
- Comprehensive protection with 20-year project experience, 0 accidents;
- Full lifecycle software upgrading services ensure real-time site visibility.
Message acquisition plan
Pre-sales service
Our professional engineers participate in the whole process, they provide service based on the project information by our customer (such as gas source, operating conditions, environment, etc.)
In-Sales Service
"Integrity-based, long-term service" provides customers with high-quality, efficient and complete services
After-Sales Service
All our publicly published contact information can directly point to follow-up services for the product.
Equipment leasing
AMICO can provide reliable performance and productivity to help you expand your business, control risks and reduce costs.
