Common Power 300KW
Rated Voltage 415V
Rated Current 542A
More Information
500kW Natural Gas Generator Set (Silent Enclosure) Technical Parameters

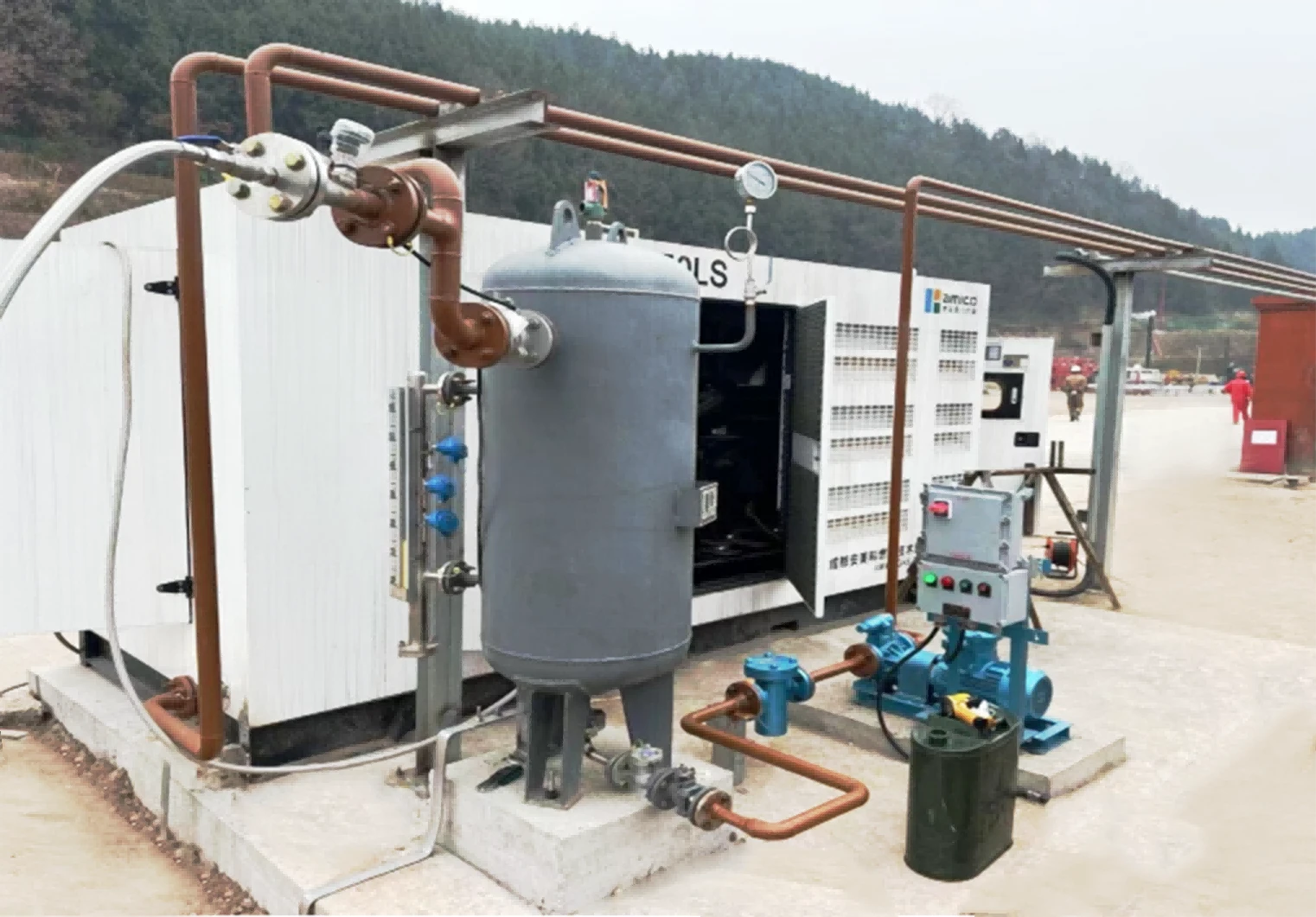

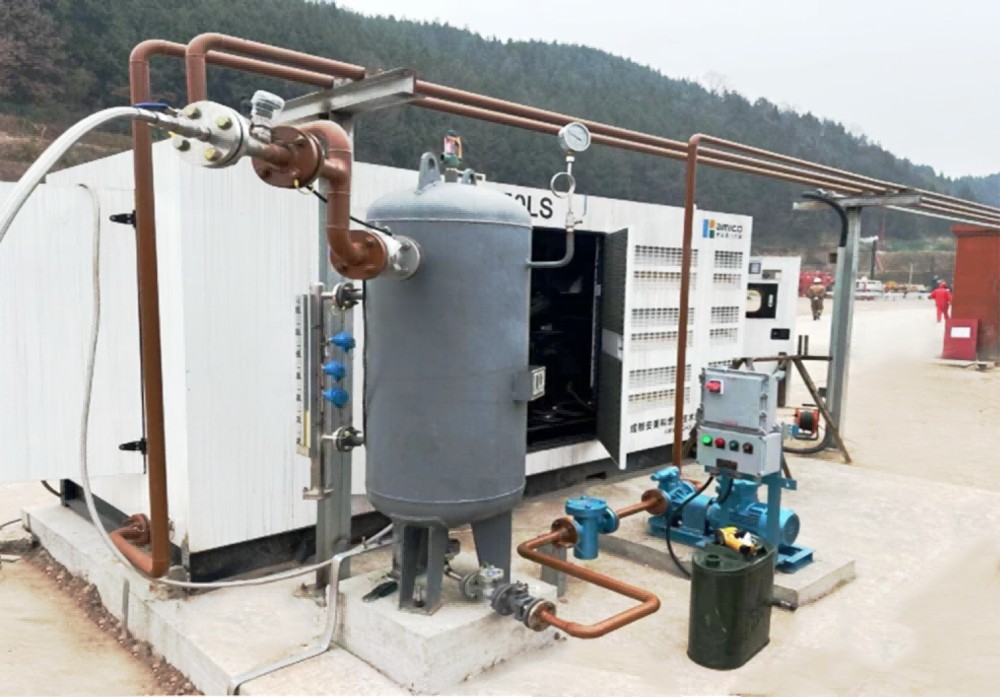

System Configuration The unit uses low-pressure liquefied petroleum gas (367kpa) which enters the LPG generator set after passing through a buffer tank (if required, to be provided by customer). After normal operation, it provides 1×415V power supply for customer to connect to ATS (if required, to be provided by customer) and then to customer's switchboard. External power cables for LPG generator set to be provided by customer.
Main Parameters of Generator Set
Model AMC300LS
Rated Power 300KW
Rated Voltage 415V
Rated Current 542A
Rated Frequency 50Hz
Starting Method 24V Electric Start
Voltage Regulation AVR
Dimensions 3000×1100×1650 (For reference only, subject to actual measurement)
Weight 5000Kg (For reference only, subject to actual measurement)
Structure The unit adopts an integrated structure with high-strength steel base frame. Cooling fan and battery charger are fully protected with covers.
Operating Environmental Conditions
Altitude ≤1000m
Ambient Temperature -15℃～40℃
Relative Humidity ≤90%
Production Standards GB/T2820、GB/T12786-1991
1. Efficiency
- Improve air-fuel ratio while reducing emissions, extend engine lifespan, and lower maintenance costs
- Precisely control gas combustion, improving fuel economy by 5-10% year-on-year
- Control system certified by CCS with reliable quality, stable operation, and low post-operation maintenance costs
2. Responsiveness
- Ultra-high-speed fuel injection valve controls fuel supply for instant engine response, meeting surge load demands like sudden acceleration/deceleration. Proven in large oilfield (drilling, fracturing) and factory fluctuation applications.
3. Emissions
- Complies with China National V emission standards or non-road T3+ standards
- NOx below 200ppm
4. Others
- Short delivery time, minimum 1-week turnaround;
- "Plug-and-play" integrated design enables power-on within 1 day; facilitates project relocation;
- Comprehensive protection with 20+ years project experience and 0 accidents;
- Full lifecycle software upgrading services ensure real-time site visibility.
