Rated power: 200kW;
Rated voltage: 220/380V;
Rated frequency: 50 Hz;
Rotation speed: 1500 rpm.
More Information

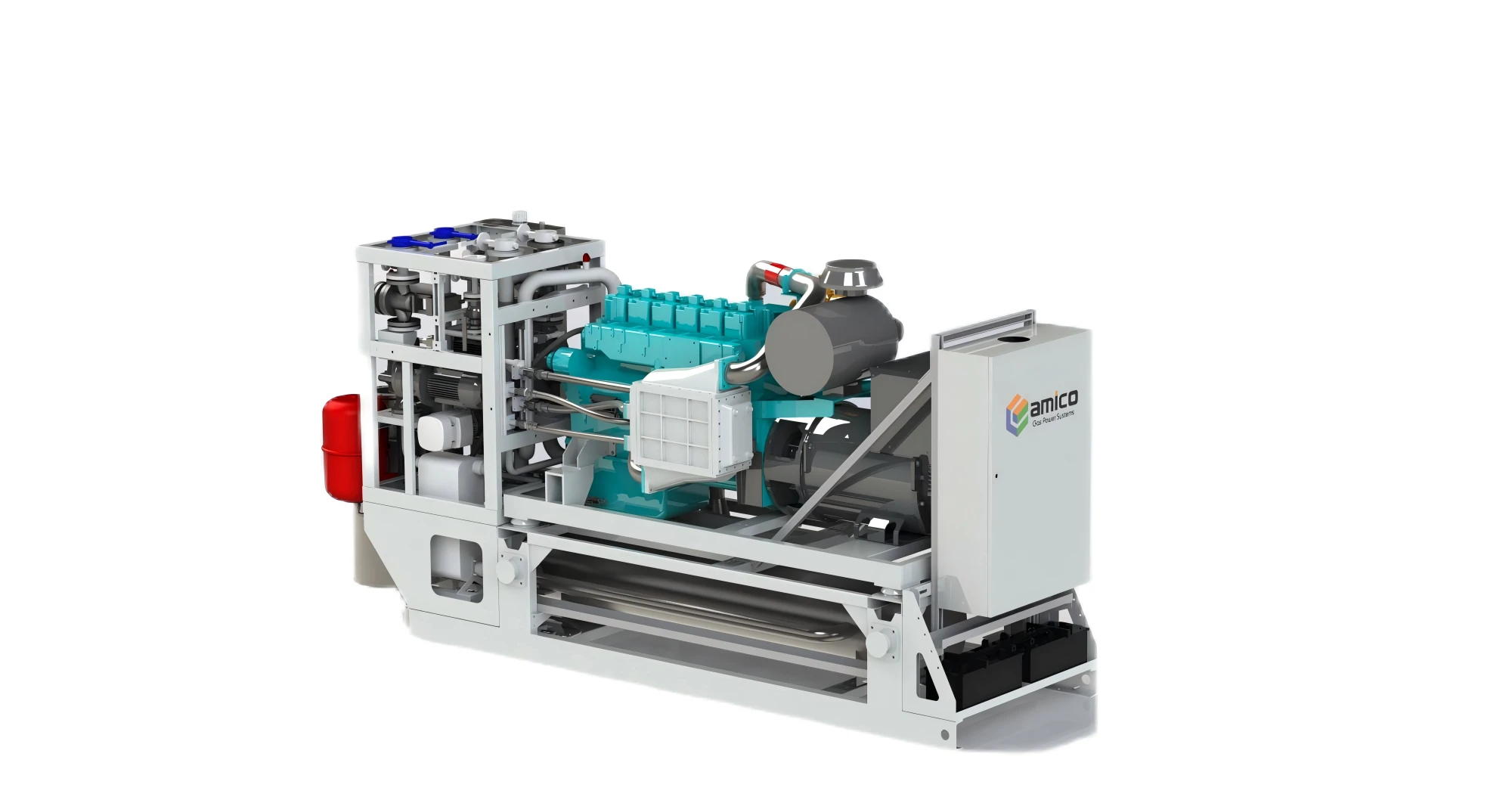

Technical Parameters of 200kW Natural Gas CHP Generator
Generator Set Technical Specifications
Generator Set Model: AMC200NC/NSC
Rated Power: 200kW;
Rated Voltage: 220/380V;
Rated Frequency: 50 Hz;
Speed: 1500 rpm;
Waste Heat Recovery Parameters
Thermal Power: 269.7kW
Hot Water Output: 11.02T/h
Thermal Efficiency: 50.3%
Overall Efficiency: 87.6%
Engine Technical Specifications
Compression Ratio: 11:1
Intake Method: Turbocharged Intake
Fuel Control Method: Lean Burn, Closed-Loop Control
Speed Control Type: Electronic Speed Control
Open Unit Dimensions (L×W×H) mm: 3800×1450×1780
Open Unit Weight (kg): 2950
Silent Unit Dimensions (L×W×H) mm: 4000×1450×1800
Silent Unit Weight (kg): 3450
Note:1. Hot Water Output①: For models below 50kW power range: Based on 50℃ inlet water, 70℃ outlet water; For models above 75kW power range: Based on 70℃ inlet water, 90℃ outlet water;
2. Power output based on ISO3046/1 conditions: Ambient temperature: 25℃, Atmospheric pressure: 100kPa, Relative humidity: 30%;
3. Above parameters based on gas source: Methane number MN>80, Lower heating value LHV≥31.4MJ/Nm³
1. Cost Efficiency
- Improve air-fuel ratio while reducing emissions, extend engine lifespan, and lower maintenance costs
- Precisely control fuel combustion, achieving 5-10% higher fuel economy compared to conventional systems
- System certified by CCS (China Classification Society), ensuring reliability, stable operation, and low post-operation maintenance costs
2. Responsiveness
- Ultrasonic fuel injection valves control fuel supply, enabling instant engine response to meet sudden load changes (e.g., abrupt acceleration/deceleration). Proven in large-scale oilfield applications (drilling, fracturing) and industrial fluctuating conditions.
3. Emissions
- Complies with China National V emission standards or non-road T3+ standards
- NOx levels below 200ppm
4. Others
- Short delivery time, fastest within 1 week;
- "Plug-and-play" integrated design, fastest electrification within 1 day; facilitates project relocation;
- Comprehensive protection with 20 years of project experience, 0 accidents;
- Full lifecycle software upgrading services enable real-time site monitoring.
